Gantry milling machine

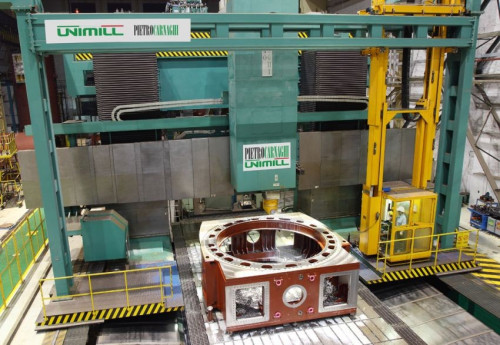

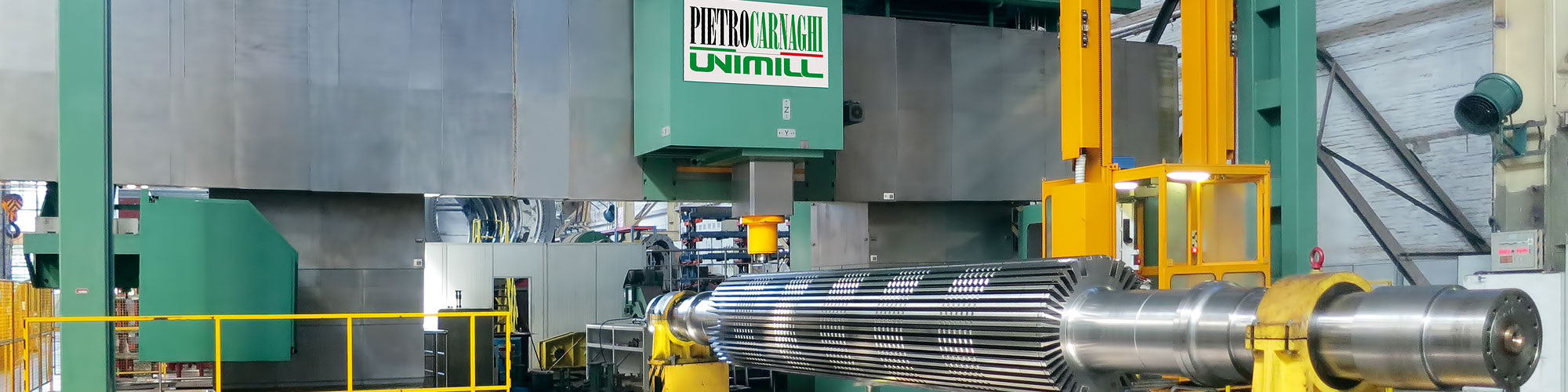

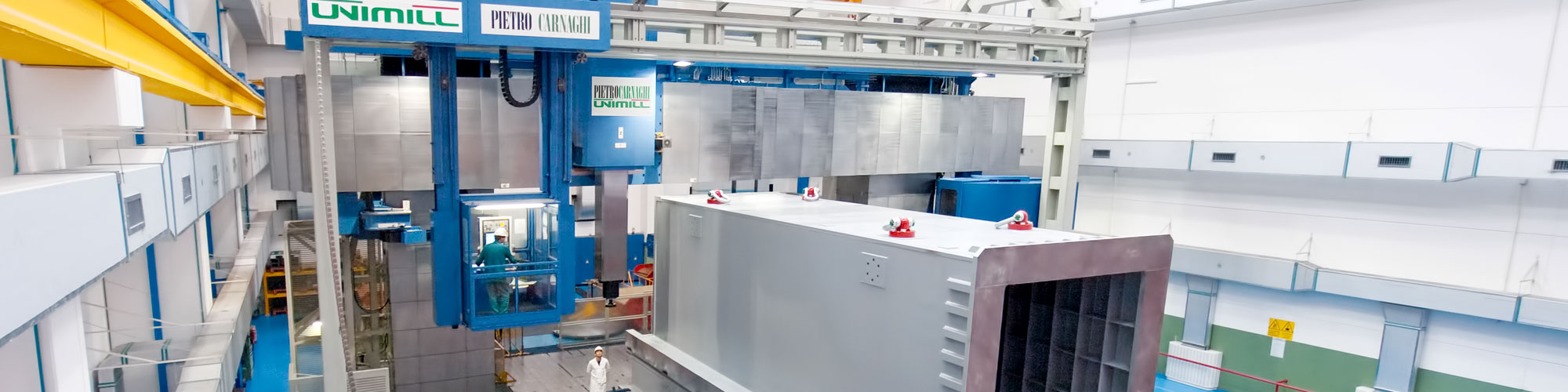

Pietro Carnaghi has produced vertical movable portal milling machines (GANTRY type) named Series UNIMILL for many decades.
Characterized by extremely innovative technical solutions and with an high level of automation and quality, UNIMILL machines are designed and assembled with massive structures, with the movable portal sustained by means of hydrostatic guideways, including the movement of Y axis. The distance between the columns arrives up to 10000 mm (32.8 ft) and the working plane arrives to 9000 mm (29.5 ft). Floor plate length is modular and it is defined by customer needs. The UNIMILL gantry milling machines can be equipped with an additional turning table, to be the most complete solution for all the possible machining requirements.
Unimill machines allow operation with a pendulum concept: it is possible to have 2 separate areas on the floor table. One machining area, with protections and movable enclosures (optional) and one area to set up the part, that is accessible with bridges on the covers of the guideways.
During the design activity the main focus was on the flexibility, to ensure the maximum productivity.
Accessory and tool change is fully automatic, with tool chain, disk magazines or movable pick up systems.
A wide range of different accessories for milling operations are available.




Technical data:





UniMil
40
UniMill
50
UniMill
60
UniMill
70
UniMill
80
UniMill
90
UniMill
100
UniMill
110
UniMill
120
UniMill
130
UniMill
140
Distance between the columns mm 4000 5000 6000 7000 8000 9000 10000 11000 12000 13000 14000
Table width mm 3000 4000 5000 6000 7000 8000 9000 10000 11000 12000
Milling height with vertical head: fixed crossrail mm 1500 - 2000 - 2500
Milling height with vertical head: movable crossrail mm 3000 - 3500 - 4000 3000 - 4000 - 5000 - 6000 4000 - 5000 - 6000 - 7000 4000 - 5000 - 6000 - 7000 - 8000
Ram stroke Z axis mm 1500 2000 - 2500 - 3000 - 3500 - 4000
Ram section mm 480 x 480 500 x 500 / 600 x 600
Milling power kW 37 / 50 60 / 75 / 113
Milling torque Nm 1900 / 2600 6122 / 6250 / 10100
Max. RPM rpm 4000 4000 / 2500
Tool taper   ISO 50 - HSK 100 ISO 50 or HSK 100 / ISO 60 or HSK 160
Rapid feed X, Y and Z mm/min 20000 15000 10000
Turning table diameter mm 3000 4000 5000 6000 8000 10000
